Laser Lightsheet Triangulation:

3-dimensional surface and deflection measurement using a very thin laser light sheet projection.

Simple triangulation techniques allow the reconstruction of the complete 3-dimensional surface.



Information on several different methods on 3D-surface measurement can be downloaded here:

• Survey on 3D and interferometry methods (1M)



Example:



	Projected laser light line on a small helicopter model

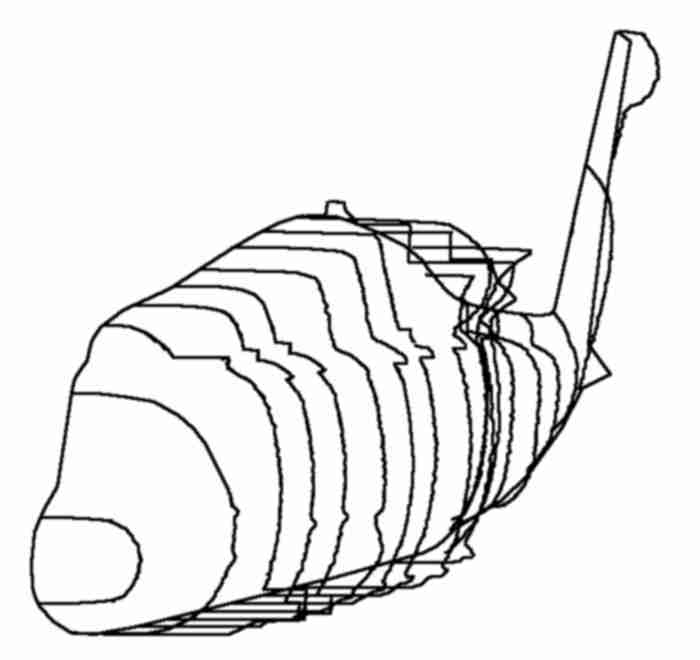

	Body section plot of the 3-dimensional model using the resulting data

---
